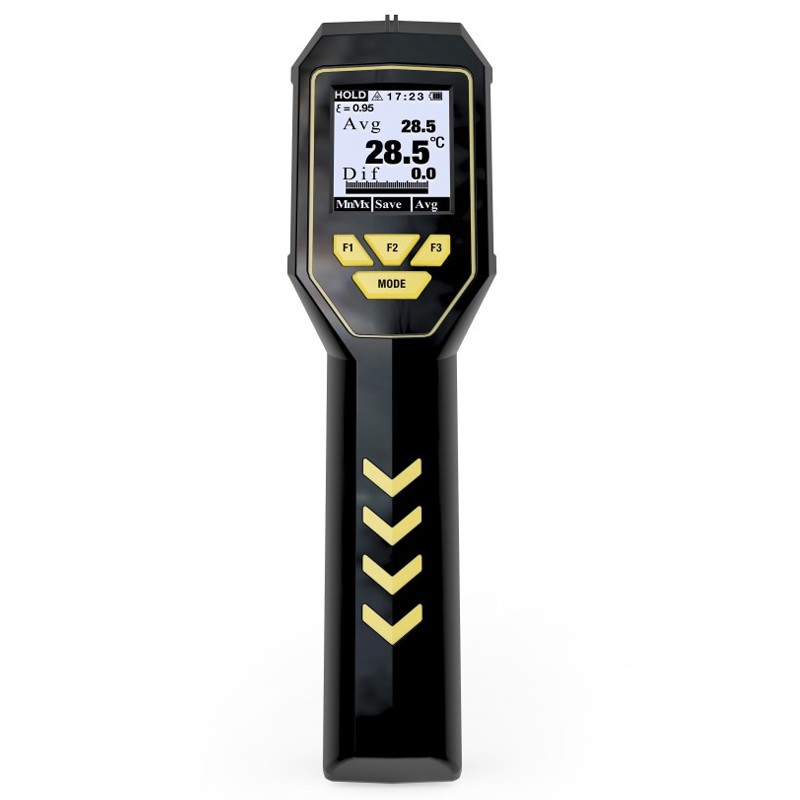

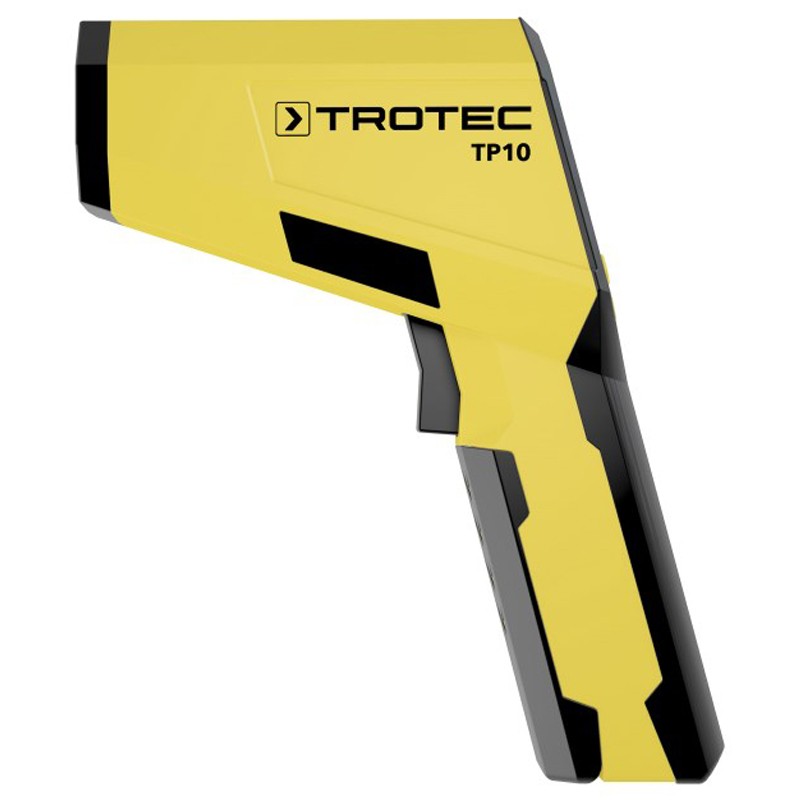

Versatile Precision TP10 Trotec professional infrared thermometer

Versatile Precision TP10 Trotec professional infrared thermometer.
Versatile precision infrared thermometer intended for professional use.

The professional pyrometer TP10 combines precision measurement technology, flexible application areas, a large number of sophisticated features that are easy to use and an excellent price/performance ratio in a high quality range of pyrometer.

Whether it is for a reliable diagnosis, maintenance of heating, air conditioning or ventilation, thanks to its extensive measuring range from-50 ° C to + 1 850 ° C, its high optical resolution of 75: 1, its degree of adjustable program and its many technical characteristics, this precision infrared thermometer is also suitable for operations complex and demanding of maintenance measurement, monitoring, analysis or documentation.

The built-in memory function that stores up to 100 points measures allows, for example, to find just the different places where the control was made.

During each measurement, differential, maximum, minimum and average values are defined and can be displayed in addition to the current measured value with simple call of the respective function.

The perfectly readable screen has a backlight that is optimal for use in poorly lit environments.

Furthermore, the infrared thermometer is equipped with an alarm with freely definable limit values. As soon as the temperature measured is outside the range of temperatures, an acoustic and optical alarm.

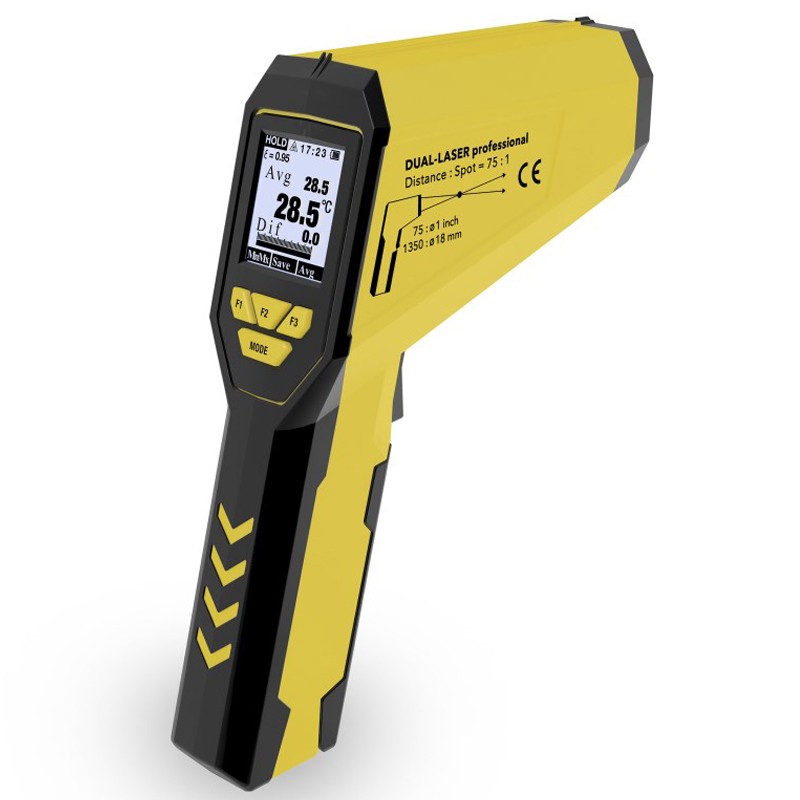

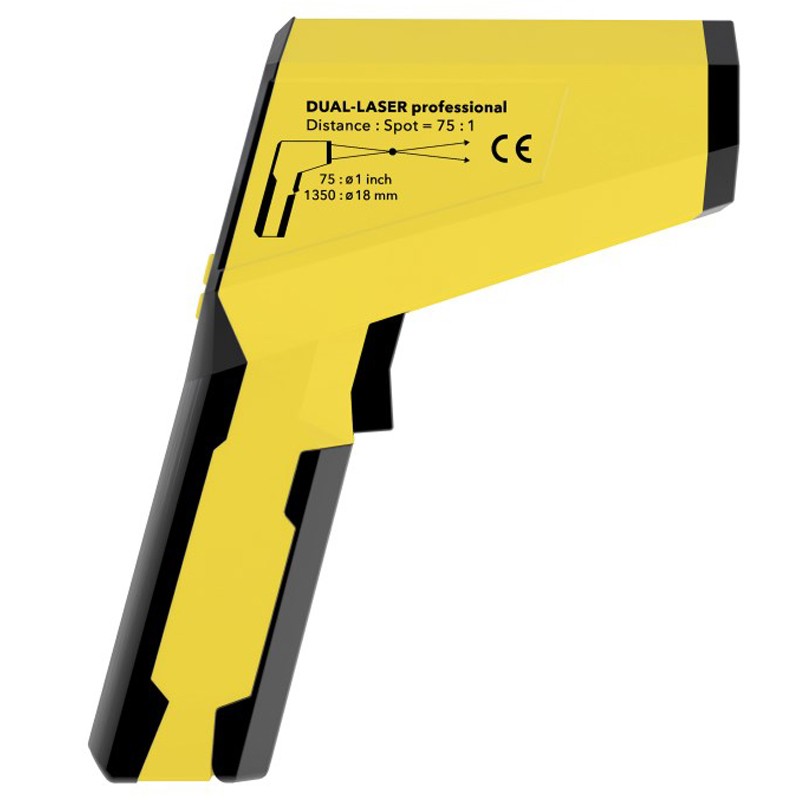

Two points of double laser that automatically displays the size of the spot size and the TP10 improved optical system to measure the temperature of surfaces, even of very small elements of construction or distant objects.

During continuous measurements, the TP10 can be fixed on a tripod.

Combined measure of temperature by infrared and contact:
The fitting with the miniature flat plug of the TP10 allows you to plug the contact type sensor K content in the delivery or other similar temperature sensors to perform other measures of temperature by contact and expand the possibilities of use.

To save the batteries, it is possible to connect the TP10 to the USB port on your computer with the connecting cable contained in the delivery. The USB function also allows to record series of measurement by software during continuous measurements of thermal cycles for mechanical or climatic processes.

Technical features:
General information
Item number: 3.510.003.045
Optics
Optical resolution (D:S): 75: 1
More small spot size: 18mm @ 1 350 mm
Infrared temperature sensor [° C]
Range [° C] min.:-50
Range Max [° C]: 1 850
Precision Max [° C]: not available
Precision <-4 c: not available
Accuracy of-4 ° C to 65 ° C: not available
> 65 ° C accuracy: not available
< 20 ° C accuracy: not available
Precision = 20 ° C: not available
Accuracy - 50 ° C to 20 ° C (-58 ° F to 68 ° F): ± 3.0 (5.4)
Accuracy of 21 ° C to 300 ° C: not available
301 ° C accuracy at 1,000 ° C: not available
Accuracy of 21 ° C to 400 ° C: not available
Accuracy of 401 ° C to 800 ° C: not available
Accuracy of 800 ° C to 1 600 ° C: not available
Reproducibility of-50 ° C to 20 ° C: ± 1.5 (2.7)
Reproducibility of 21 ° C at 1,000 ° C: not available
Reproducibility of 21 ° C to 1 200 ° C: not available
Reproducibility of 1 201 ° C 1 600 ° C: not available
Precision 20 ° C to 500 ° C (68 ° F to 932 ° F): ± 1,0% ± 1.0 (1.8)
Precision 500 ° C at 1,000 ° C (932 ° F 1 832 ° F): ±1, 5%
Precision 1 000 ° C and 1 850 ° C (1832 ° F 3 362 ° F): ±2, 0%
Reproducibility 20 ° C at 1,000 ° C (68 ° F to 1 832 f): ±0, 5% ±0, 5 (0.9)
Reproducibility 1,000 ° C to 1 850 ° C (1832 ° F 3 362 ° F): ±1.0%
Infrared temperature sensor [° F]
Min. [° F] range: not available
[° F] maximum measuring range: not available
Accuracy ± min. [° F]: not available
Precision Max [%]: not available
Integrated temperature probe [° C]
Range [° C] min.: not available
Max [° C] measuring range: not available
Accuracy ± min. [° C]: not available
Accuracy ± Max [° C]: not available
Integrated temperature probe [° F]
Min. [° F] range: not available
[° F] maximum measuring range: not available
Accuracy ± < 23 ° F to 150 ° F ° F [° F]: not available
Accuracy ± > 150 ° F [° F]: not available
Dew point temperature [° C]
Range [° C] min.: not available
Max [° C] measuring range: not available
Accuracy: not available
Relative humidity
Min. [%] range: not available
Max [%] range: not available
Precision [%]: not available
Ambient conditions
Operation - temperature min. [° C]: 0
Operation - temperature Max [° C]: 50
Operation - humidity rel. min. [% RF]: 10
Operation - humidity rel. (without condensation) maximum [%]: 90
Stock - Temperature [° C] min.:-10
Stock - Temperature [° C] maximum: 60
Storage - humidity rel. (without condensation) maximum [%]: 80
Screen
LCD: standard equipment
monochrome: standard equipment
Interfaces
USB: standard equipment
Plug for K type temperature sensor: standard equipment
Organization of memory
Internal flash memory: 100 recordable measurement values
Unit
Push buttons: standard equipment
Membrane keyboard: not available
Index of protection
IP54: standard equipment
IP65: not available
Sensor temperature
Response time: 150 ms
Spectral sensitivity: 8 ~ 14 µm
Laser (target display)
Class: Class 2 (II)
Wavelength [nm]: 630 ~ 670
Power [mW]: 1
Power supply
internal (drums): 9V battery
external (USB): standard equipment
Models of enclosures
Plastic: standard equipment
Dimensions
Length (without package) [mm]: 168
Width (without package) [mm]: 56
Height (without package) [mm]: 225
Weight
(without packaging) [kg]: 0.35

CONTENT OF STANDARD DELIVERY
Content of standard delivery
Measuring device: standard equipment
Contact temperature sensor type K: standard equipment
Case of service: standard equipment
USB cables: standard equipment
Mini Tripod: standard equipment
Battery: standard equipment
Operating manual: standard equipment
Carry bag: not available
MEASURABLE QUANTITIES AND FUNCTIONS
Internal sensors
Temperature [° F] materials: standard equipment
Temperature ambient [° C]: standard equipment
Temperature of the air [° F]: standard equipment
Temperature [° C] materials: standard equipment
Relative humidity [%]: not available
Dew point temperature [° C]: not available
Dew point temperature [° F]: not available
Features and equipment
Double laser activated: standard equipment
Function of switching the temperature unit (° C / ° F): standard equipment
Display 0.1 ° C resolution: standard equipment
Continuous measurement function: standard equipment
Display maximum value: standard equipment
Display minimum value: standard equipment
Function of maintaining measure: standard equipment
Differential value display: standard equipment
With values alarm limits defined by the user: standard equipment
Acoustic alarm function: standard equipment
Adjustable emissivity from 0.1 to 1.0: standard equipment
Backlit LCD display: standard equipment
Auto power off: standard equipment
Indicator maximum value: standard equipment
Open sight: standard equipment
Additional temperature with external sensor type K measurement: standard equipment
Can be used for the recording of series of measurement by software: standard equipment
Tripod socket connector: standard equipment
The battery charge level display: standard equipment
HACCP-LED indicator fast: not available
Temperature measurement of extra material with drilling type sensor K: not available
Meets the requirements of the Food Act LFGB, section 31: not available
According to the standard DIN 10955:2004: not available
Activatable individual laser pointer: not available
Level of emissivity fixed at 0.95: not available
Acoustic dew point alarm: not available
Visual dew point alarm: not available
Timer function: not available
Indicator bar graph to quickly determine the risk of condensation: not available
Temperature [° F] materials: standard equipment
Temperature [° C] materials: standard equipment

Warranty: 2 years
