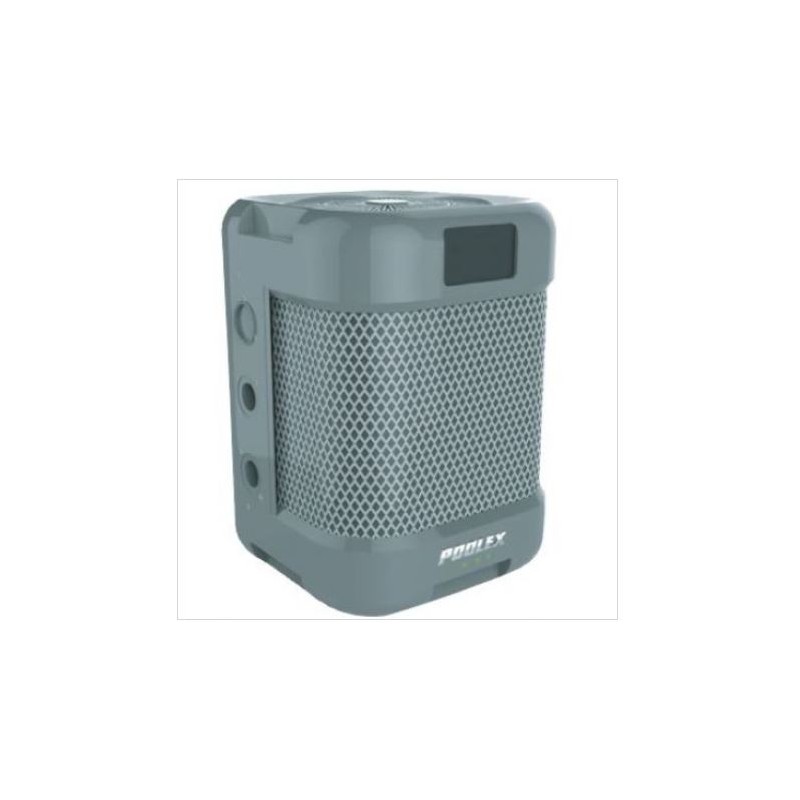

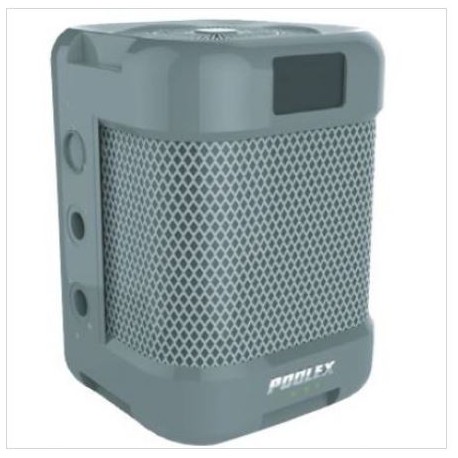

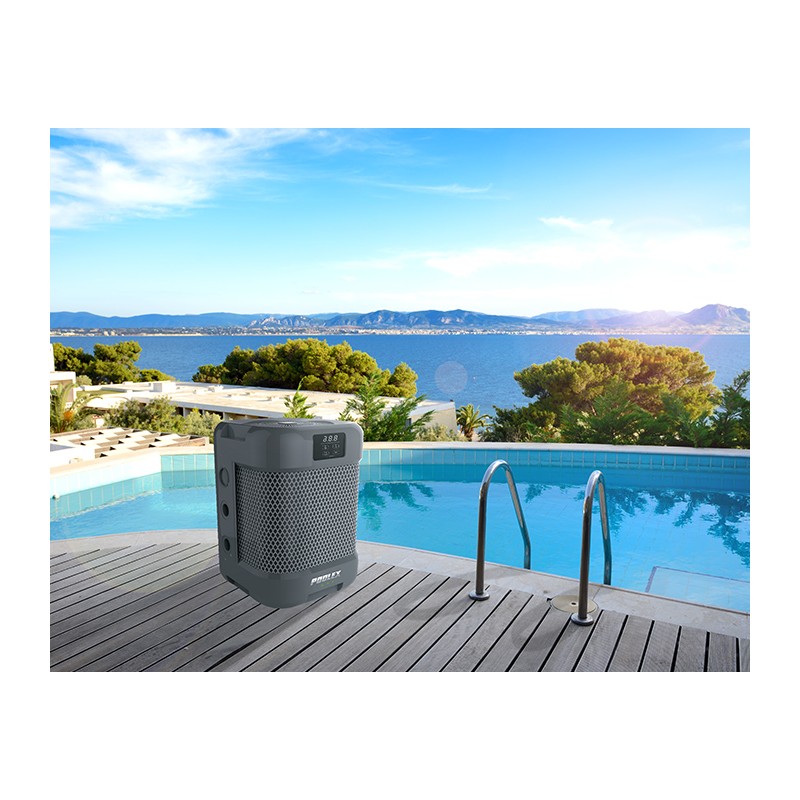

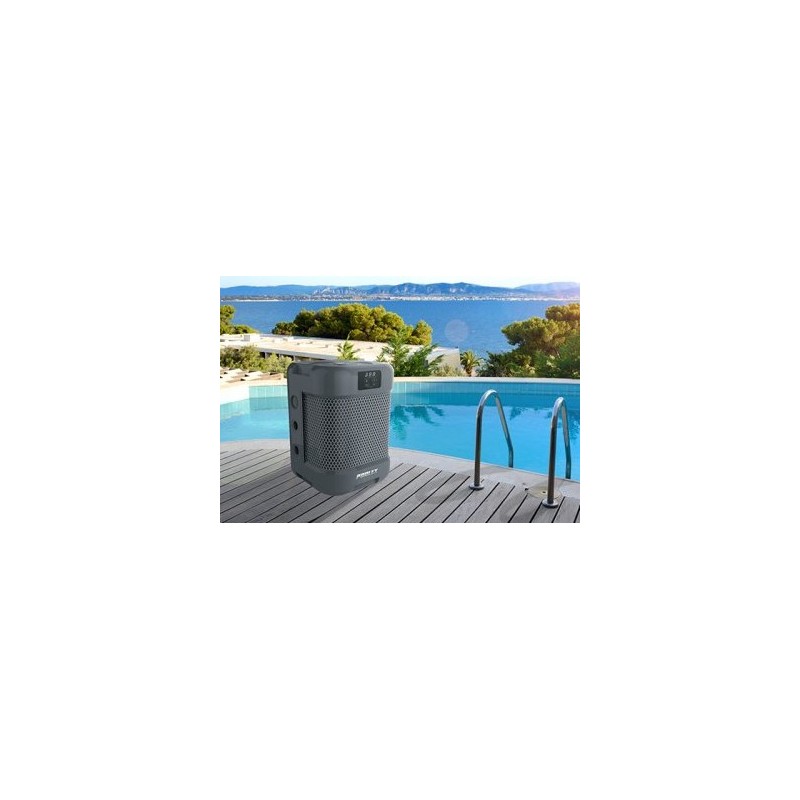

Poolex Q-Line 7 vertical heat pump for Basins 30 to 40 m3

Poolex Q-Line 7 vertical heat pump for Basins 30 to 40 m3.
The Poolex QLine Heat Pump with LED on the front indicate the water temperature is dedicated to basins of 30 to 40 m3.
-The R32 fluid improves volumetric performance. Energy is superior to other fluids such as R410A which is currently the most used fluid in heat pumps.
-The R32 is a mixed fluid, it is a completely pure refrigerant that means it will be even more easily recyclable.
-R32 refrigerant is a refrigerant ahead of regulation as its impact on the environment is 75% less than current fluids on the market.

Efficiency at a shock price!
The average volume of new pool constructions has been halved in 40 years. Today it is around 32 m3. It is around this precise volume of water that the Q-Line 7 was born. In order to offer a product that is easy to install and use, Poolex has created a heat pump dedicated to basins of 30 to 40 m3, concentrating the best in terms of technology, ergonomics, design and performance.

Full Inverter found on most Poolex heat pumps reduces consumption by 30 to 35% over 1 year, thanks in particular to a compressor and a variable frequency fan.
Vertical blowing, which saves a lot of space, makes it easier to choose the installation area.

On the user side, everything has been planned to make this heat pump easy to live with. Its front-facing control box can be controlled from your smartphone with its built-in WiFi module.

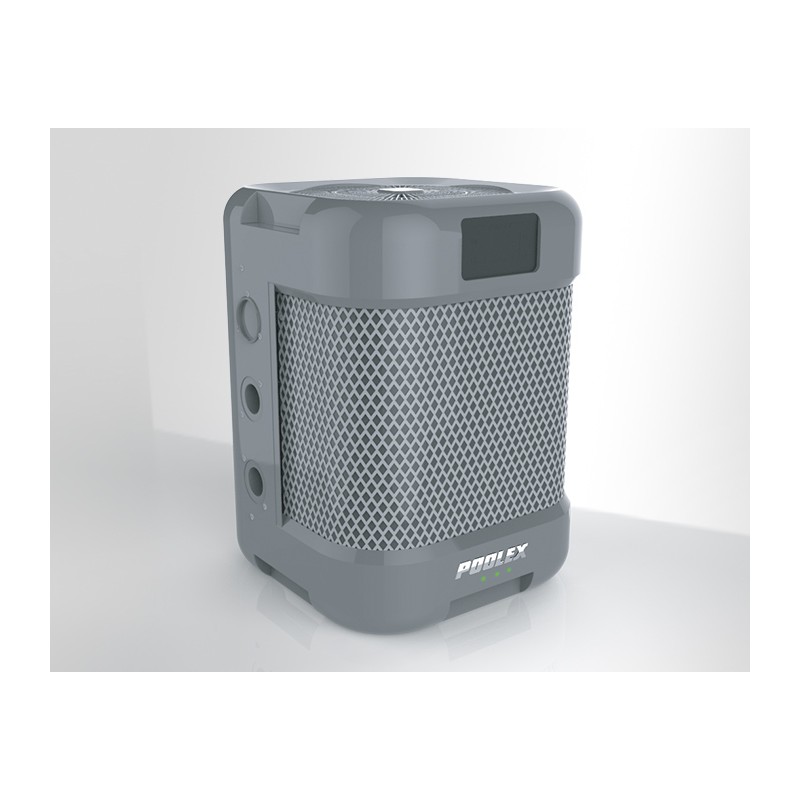

The LED on the front indicates by a color code whether the requested temperature is reached or not. Its design, combining cubic shapes and curves, allow it to match all styles of swimming pools and its ABS hull gives it the necessary resistance for long life.

Benefits

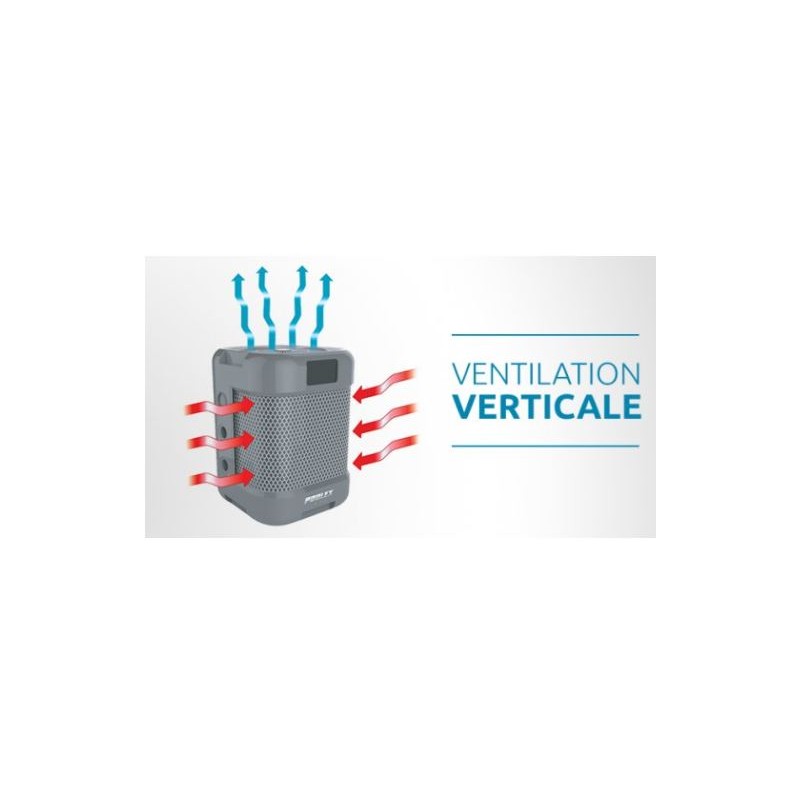

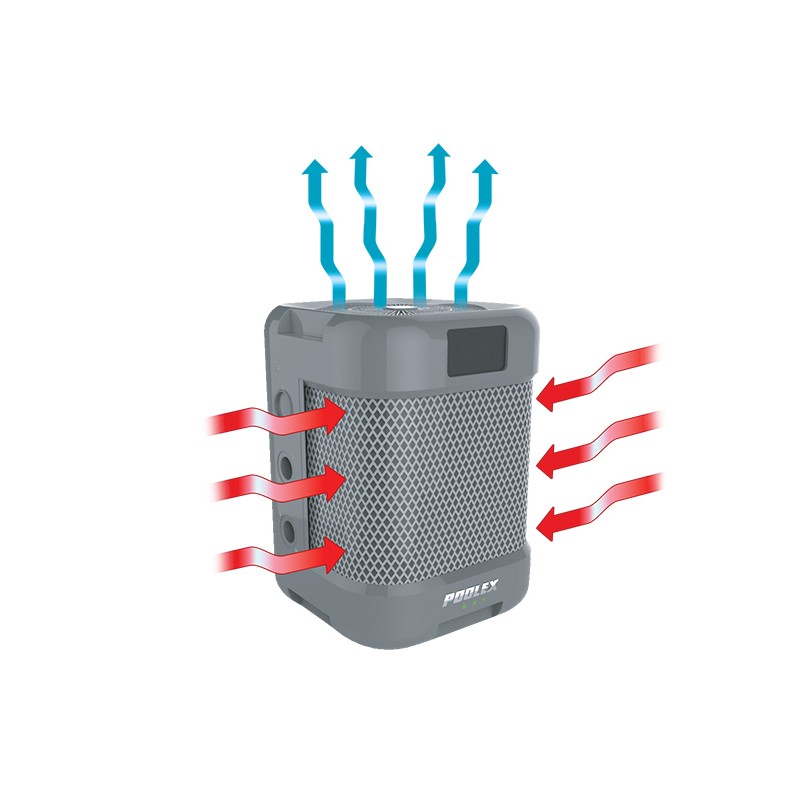

The vertical blowing of the Q-Line 7 saves a lot of space by reducing the area of stale air evacuation. With a vertical design, it is installed in the most limited technical premises.
Already popular with the home heating and cooling sectors, Full Inverter technology allows your heat pump to function intelligently with precise fan and compressor setting.

When the pump starts, unlike a traditional pump, the compressor starts gradually. An automatic regulator boosts the CAP's capacity for a rapid rise in temperature when the set temperature is far from the temperature of the basin. During the season, and to maintain the set temperature, the heat pump operates at reduced power.

This continuous regime means that the Full Inverter heat pump operates more stablely, which preserves the compressor by avoiding untimely starts and stops, resulting in energy savings of more than 35%.

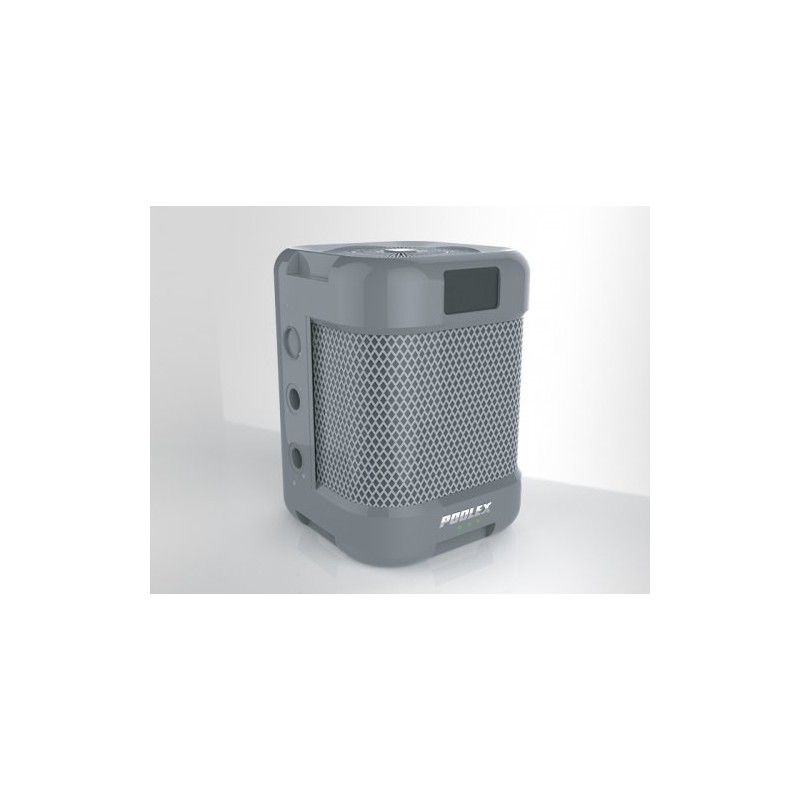

Popular in the computer hardware and decoration sector, the ABS façade demonstrates a good resistance to exterior elements without compromising on its decorative attributes. The Q-Line 7 in the shape of a rounded cube is suitable for all styles of swimming pools and garden architectures.
Because a CAP, as powerful as it is, must be as simple to use, the Poolex Q-Line 7 can be controlled via your smartphone in WiFi thanks to a built-in control panel located on the pump.

The LEDs built into the façade of the heat pump give it a colourful style while providing a most useful technical feature: instant visualization of the state of the pump's operation.

Green: The set temperature is reached.
Blue: The basin is being heated.
Red: The CAP is not in operation.

Accessories included
Insulated wintering cover
Anti-vibration support kit
PVC connectors diameter 32-38 mm
Condensate evacuation pipe
Maintenance box including multilingual user manual

Guarantees
-2-year guaranteed heat pump
-Guaranteed 5 years
-Titanium snake guaranteed 15 years against corrosion

Specifications:
Model: Poolex Q-Line 7
Basin volume (m3): 30-40m3
Air 26oC / Water 26oC / Hydro 80%
Capacity (W): 7.01-1.35
Power Consumed (W): 1.09-0.105
COP: 6.43
Air 15oC / Water 26oC / Hydro 80%
Capacity (W): 5.01-1.02
Power consumed (W): 1.6
COP: 4.51
Power: Mono 220V-240V/50Hz
Max Power (W): 3580
Max Intensity (A): 1.6
Heating temperature range: 15C / 40C
Operating range: -10C / 43C
Function: Heating/ Cooling
Flow (m3/h): 2.2
Refrigerator: R32
Packaging dimensions (mm): 500 x 500 x 760
Dimensions (mm): 450 x 450 x 760
Net weight / Gross (kg): 35 / 43
Noise at 1 m (DB): <45
Noise at 4 m (DB): <36
Noise at 10 m (DB): <19-<27
Compressor type: Simple rotary
Compressor brand: Toshiba
Interchange: Twisted Tech Titanium
Function: Heating
Losses in charge (mCE): 1.1
