Vertical heat pump Poolex Q-Line 5 for Basins of 35m3

Poolex Q-Line 5 Vertical Heat Pump for 35 m3 Full Inverter Pools
The Poolex Q-Line Full Inverter heat pump with LEDs on the front indicate the water temperature is dedicated to basins of up to 35m3.
The Poolex Q-Line 5 kW heat pump is designed for heating swimming pools from 20 to 35 m3. The Poolex Q-Line range is available in 3 powers (5kw, 7kw and 9kw) to cover the vast majority of pools. It inherits the best Poolex technologies and offers high-end performance at an excellent value for money.
Compact, design, silent and very simple to use, the Q-Line heat pump is the ideal solution for heating your pool.

Full Inverter technology of the Poolex Q-Line heat pump offers many advantages: powerful, economical and ultra-quiet heating. Power consumption is reduced by up to 35% compared to a traditional heat pump, on average over a season thanks to a Full Inverter variable speed compressor.
At the beginning of the season and when the need for heating is greatest, the heat pump works at full power to quickly heat the pool. During the rest of the season the temperature simply needs to be maintained, the heat pump then operates in economical and silent mode.
The fan adapts to the speed of the compressor in order to significantly reduce the noise emitted by the heat pump, especially in summer. Switching from one operating mode to another is managed automatically by the heat pump, but can also be selected manually.

Benefits:

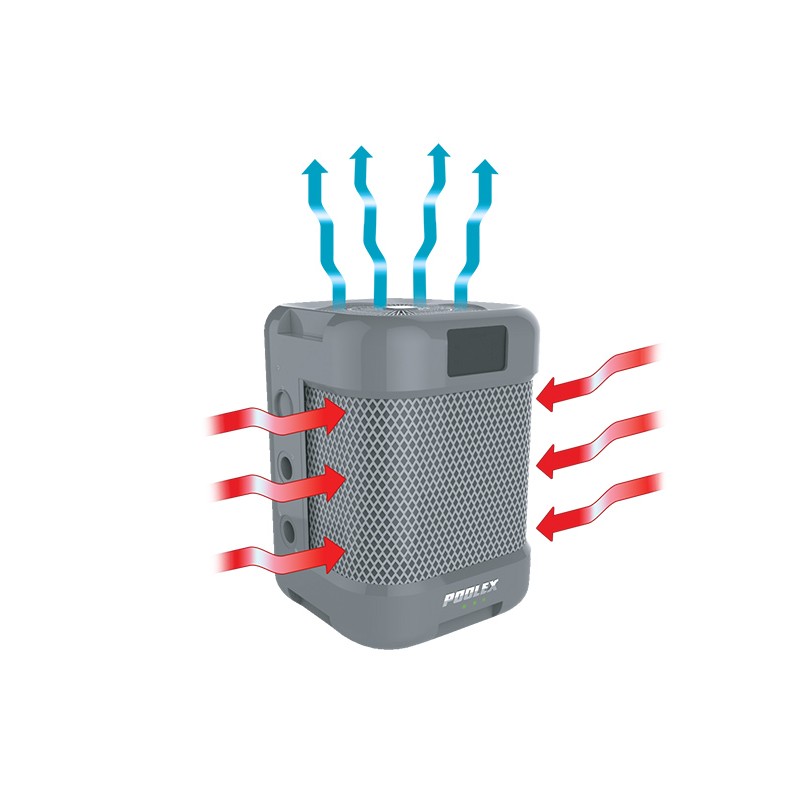

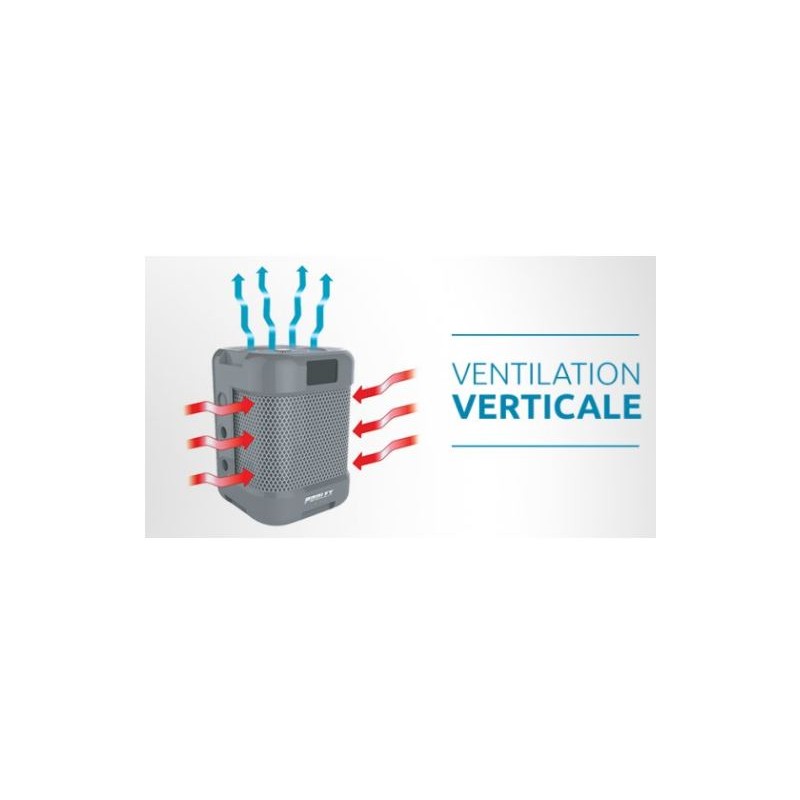

The vertical blowing of the Q-Line 7 saves a lot of space thanks to the reduction of the exhaust zone of the stale air. With a vertical design, it is installed in the most restricted technical rooms.
Already popular with the domestic heating and cooling industries, Full Inverter technology enables intelligent operation of your heat pump through precise fan and compressor adjustment.
When the pump starts, unlike a traditional pump, the compressor starts gradually. An automatic regulator boosts the capacity of the heat pump for rapid temperature rise when the set temperature is far from the pool temperature. During the season, and to maintain the set temperature, the heat pump operates at reduced power.
This continuous speed means that the Full Inverter heat pump operates more stably, which preserves the compressor by avoiding untimely starts and stops, resulting in energy savings of more than 35%.
Prized in the computer hardware and decoration sector, the ABS façade demonstrates good resistance to external elements without compromising on its decorative attributes. The Q-Line 7 in the shape of a rounded cube fits all pool styles and garden architectures.

Because a CAP, as efficient as it is, must be as simple to use, the Poolex Q-Line 7 can be controlled via your smartphone via WiFi thanks to a built-in control panel located on the pump.
The LEDs integrated into the front of the heat pump give it a colorful style while providing a most useful technical feature: the instant visualization of the state of operation of the pump.
Green: the set temperature is reached.
Blue: the pool is being heated.
Red: the CAP is not in operation. Stopped.

Accessories included
Insulated wintering cover
Anti-vibration mount kit
PVC connectors diameter 32-38 mm
Condensate drain pipe
Service box including the user manual.

GUARANTEES
-Heat pump guaranteed 2 years
-Compressor guaranteed 5 years
-Titanium coil guaranteed 15 years against corrosion

Specifications:
Model: Poolex Q-Line 7
Volume of the basin (m3) : 20-35m3
Air 26°C / Water 26°C / Hydro 80%
Capacity (W): 5.5~1.12kW
Power Consumption (W): 0.86~0.089
COP: 6.40
Air 15°C / Water 26°C / Hydro 80%
Capacity (W): 4.15~0.85kW
Power consumption (W): 1,132kW
COP : 4.51
Power supply: Mono 220V-240V/50Hz
Max power (W) : 3580
Max intensity (A) : 1.6
Heating temperature range: 15°C / 40°C
Operating range: -10°C / 43°C
Function: Heating / Cooling / Ecosilent / Defrosting
Flow rate (m3/h) : 1.8
Refrigerant: R32
Package dimensions (mm): 500 x 500 x 760
Dimensions (mm): 450 x 450 x 760
Net weight / Gross (kg) : 32 / 43
Noise at 1 m(dB(A)): <45
Noise at 4 m(dB(A)): <36
Noise at 10 m(dB(A)): <19-<27
Compressor type: Single rotary
Compressor brand: Toshiba
Exchanger: Twisted Tech Titanium
Function: Heating
Pressure drop (mCE): 1.1

Brand: Poolex
Poolex designs and manufactures a wide range of pool heat pumps. With a very high reputation among its customers, Poolex is today the most recognized heat pump brand.
Poolex PACs offer a number of advantages: superior energy performance, quiet operation, excellent service life and a very advantageous quality/price ratio. In addition, the design and after-sales service are located in France.
